首頁進口晶振7X54070001,TXC有源晶振,耐高溫晶振

    7X54070001,TXC有源晶振,耐高溫晶振

  • 規格型號：30256698
  • 頻率：54MHz
  • 尺寸：3225mm
  • PDF
  • 產品描述：7X54070001,TXC有源晶振,耐高溫晶振,采用低功耗電路設計,工作電流低至幾毫安級別,可有效減少設備整體能耗,尤其適合汽車電子,便攜式工業檢測設備等對功耗敏感的場景.


7X54070001,TXC有源晶振,耐高溫晶振
該型號晶振深度融合TXC數十年的石英晶體研發經驗,采用先進的高精度石英晶體切割工藝與密封式封裝技術,在常溫條件下,頻率精度可嚴格控制在±10ppm以內,這一精度水平完全滿足通信,工業控制等領域對時鐘信號的高精準要求.更值得關注的是,即便在高低溫頻繁切換的波動區間,通過內部溫度補償電路的精準調節,其頻率漂移量仍能嚴格控制在行業領先的±25ppm以內,確保設備在復雜溫度環境下仍能保持穩定運行.同時,臺灣TXC晶振在生產過程中建立了嚴格的質量管控體系,從原材料篩選到成品檢測,每一個環節都經過精密把控,使得7X54070001的產品批次間一致性優異,不同批次產品的頻率參數偏差極小,能完美滿足批量生產中對時鐘信號統一性的嚴苛要求,廣泛適配5G通信模塊,工業物聯網傳感器,高精度工業控制芯片,醫療設備控制單元等對頻率穩定性要求極高的元器件,為下游產品的性能穩定性提供有力保障.


7X54070001,TXC有源晶振,耐高溫晶振
原廠型號 Originalmodel： 7X54070001 品牌brand： TXC
Manufacturer品牌 TXC OperatingTemperature溫度 -40°C ~ 105°C
Series型號 7X Current-Supply(Max) 15mA
Type類型 XO PackageHeight高度 1.1mm
Frequency頻率 54MHz Termination  腳位 4 pad
輸出方式 Output： CMOS PackageType  封裝類型 4-SMD
Voltage-Supply電壓 3.3V Packaging  包裝 TapeandReel
FrequencyStability頻率穩定度 ±50ppm 安裝方式 Installation： Surfacemount

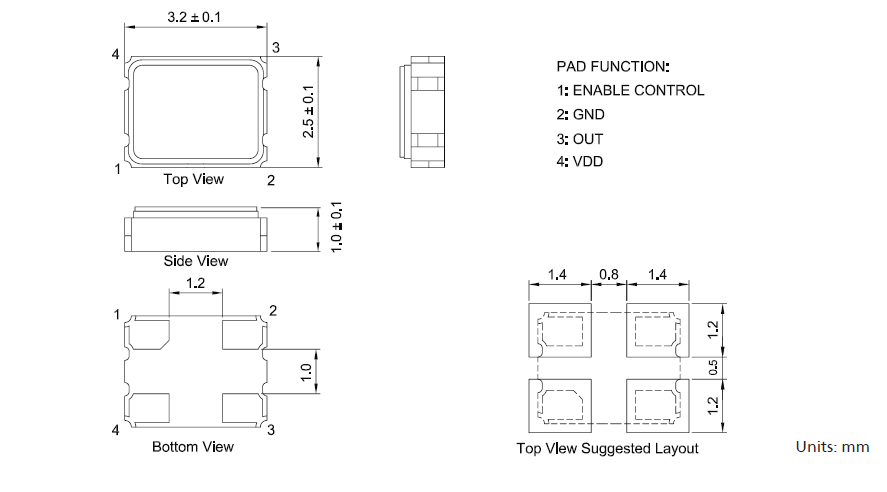

Size/Dimension尺寸 3225石英貼片晶振 最小包裝數MPQ： 3000


7X54070001,TXC有源晶振,耐高溫晶振


7X54070001,TXC有源晶振,耐高溫晶振
8NE-20.000MCJ-T TXC CORPORATION 8NE XO (Standard) 20 MHz CMOS (Low EMI) 2.5V ±50ppm
8WE-40.000MCJ-T TXC CORPORATION 8WE XO (Standard) 40 MHz CMOS (Low EMI) 2.5V ±50ppm
8WE-27.000MBJ-T TXC CORPORATION 8WE XO (Standard) 27 MHz CMOS (Low EMI) 3.3V ±50ppm
8WE-37.400MBJ-T TXC CORPORATION 8WE XO (Standard) 37.4 MHz CMOS (Low EMI) 3.3V ±50ppm
8NE-38.400MBJ-T TXC CORPORATION 8NE XO (Standard) 38.4 MHz CMOS (Low EMI) 3.3V ±50ppm
8WE-27.000MCJ-T TXC CORPORATION 8WE XO (Standard) 27 MHz CMOS (Low EMI) 2.5V ±50ppm
8WE-24.000MBJ-T TXC CORPORATION 8WE XO (Standard) 24 MHz CMOS (Low EMI) 3.3V ±50ppm
8WE-25.000MCJ-T TXC CORPORATION 8WE XO (Standard) 25 MHz CMOS (Low EMI) 2.5V ±50ppm
8NE-38.400MDJ-T TXC CORPORATION 8NE XO (Standard) 38.4 MHz CMOS (Low EMI) 1.8V ±50ppm
8WE-20.000MBJ-T TXC CORPORATION 8WE XO (Standard) 20 MHz CMOS (Low EMI) 3.3V ±50ppm
8WE-24.000MDJ-T TXC CORPORATION 8WE XO (Standard) 24 MHz CMOS (Low EMI) 1.8V ±50ppm
8NE-40.000MCJ-T TXC CORPORATION 8NE XO (Standard) 40 MHz CMOS (Low EMI) 2.5V ±50ppm
8WE-30.000MCJ-T TXC CORPORATION 8WE XO (Standard) 30 MHz CMOS (Low EMI) 2.5V ±50ppm
8NE-25.000MCJ-T TXC CORPORATION 8NE XO (Standard) 25 MHz CMOS (Low EMI) 2.5V ±50ppm
8WE-25.000MBJ-T TXC CORPORATION 8WE XO (Standard) 25 MHz CMOS (Low EMI) 3.3V ±50ppm
8WE-37.400MDJ-T TXC CORPORATION 8WE XO (Standard) 37.4 MHz CMOS (Low EMI) 1.8V ±50ppm
8NE-37.400MBJ-T TXC CORPORATION 8NE XO (Standard) 37.4 MHz CMOS (Low EMI) 3.3V ±50ppm
8WE-24.576MDJ-T TXC CORPORATION 8WE XO (Standard) 24.576 MHz CMOS (Low EMI) 1.8V ±50ppm
8NE-33.333MCJ-T TXC CORPORATION 8NE XO (Standard) 33.333 MHz CMOS (Low EMI) 2.5V ±50ppm
8WE-20.000MDJ-T TXC CORPORATION 8WE XO (Standard) 20 MHz CMOS (Low EMI) 1.8V ±50ppm
8NE-37.400MCJ-T TXC CORPORATION 8NE XO (Standard) 37.4 MHz CMOS (Low EMI) 2.5V ±50ppm
8NE-33.333MBJ-T TXC CORPORATION 8NE XO (Standard) 33.333 MHz CMOS (Low EMI) 3.3V ±50ppm
8NE-30.000MBJ-T TXC CORPORATION 8NE XO (Standard) 30 MHz CMOS (Low EMI) 3.3V ±50ppm
8WE-27.000MDJ-T TXC CORPORATION 8WE XO (Standard) 27 MHz CMOS (Low EMI) 1.8V ±50ppm
8NE-40.000MDJ-T TXC CORPORATION 8NE XO (Standard) 40 MHz CMOS (Low EMI) 1.8V ±50ppm
8NE-25.000MBJ-T TXC CORPORATION 8NE XO (Standard) 25 MHz CMOS (Low EMI) 3.3V ±50ppm
8NE-24.576MDJ-T TXC CORPORATION 8NE XO (Standard) 24.576 MHz CMOS (Low EMI) 1.8V ±50ppm
8WE-38.400MCJ-T TXC CORPORATION 8WE XO (Standard) 38.4 MHz CMOS (Low EMI) 2.5V ±50ppm
8WE-25.000MDJ-T TXC CORPORATION 8WE XO (Standard) 25 MHz CMOS (Low EMI) 1.8V ±50ppm
8NE-38.400MCJ-T TXC CORPORATION 8NE XO (Standard) 38.4 MHz CMOS (Low EMI) 2.5V ±50ppm
8NE-27.000MBJ-T TXC CORPORATION 8NE XO (Standard) 27 MHz CMOS (Low EMI) 3.3V ±50ppm
8WE-37.400MCJ-T TXC CORPORATION 8WE XO (Standard) 37.4 MHz CMOS (Low EMI) 2.5V ±50ppm
8NE-25.000MDJ-T TXC CORPORATION 8NE XO (Standard) 25 MHz CMOS (Low EMI) 1.8V ±50ppm
8WE-38.400MDJ-T TXC CORPORATION 8WE XO (Standard) 38.4 MHz CMOS (Low EMI) 1.8V ±50ppm
8WE-30.000MBJ-T TXC CORPORATION 8WE XO (Standard) 30 MHz CMOS (Low EMI) 3.3V ±50ppm
8NE-24.000MDJ-T TXC CORPORATION 8NE XO (Standard) 24 MHz CMOS (Low EMI) 1.8V ±50ppm
8WE-40.000MDJ-T TXC CORPORATION 8WE XO (Standard) 40 MHz CMOS (Low EMI) 1.8V ±50ppm
8NE-40.000MBJ-T TXC CORPORATION 8NE XO (Standard) 40 MHz CMOS (Low EMI) 3.3V ±50ppm
8WE-33.333MBJ-T TXC CORPORATION 8WE XO (Standard) 33.333 MHz CMOS (Low EMI) 3.3V ±50ppm
8WE-20.000MCJ-T TXC CORPORATION 8WE XO (Standard) 20 MHz CMOS (Low EMI) 2.5V ±50ppm
8NE-30.000MCJ-T TXC CORPORATION 8NE XO (Standard) 30 MHz CMOS (Low EMI) 2.5V ±50ppm
8WE-24.000MCJ-T TXC CORPORATION 8WE XO (Standard) 24 MHz CMOS (Low EMI) 2.5V ±50ppm
8NE-27.000MDJ-T TXC CORPORATION 8NE XO (Standard) 27 MHz CMOS (Low EMI) 1.8V ±50ppm
8NE-24.576MCJ-T TXC CORPORATION 8NE XO (Standard) 24.576 MHz CMOS (Low EMI) 2.5V ±50ppm
8NE-30.000MDJ-T TXC CORPORATION 8NE XO (Standard) 30 MHz CMOS (Low EMI) 1.8V ±50ppm
7CL-32.000MBD-T TXC CORPORATION 7CL XO (Standard) 32 MHz CMOS 3.3V ±25ppm
7CL-32.3330MBD-T TXC CORPORATION 7CL XO (Standard) 32.333 MHz CMOS 3.3V ±25ppm
7CL-14.31818MBD-T TXC CORPORATION 7CL XO (Standard) 14.31818 MHz CMOS 3.3V ±25ppm
7CL-6.000MBD-T TXC CORPORATION 7CL XO (Standard) 6 MHz CMOS 3.3V ±25ppm
7CL-166.000MDD-T TXC CORPORATION 7CL XO (Standard) 166 MHz CMOS 1.8V ±25ppm
7C-12.288MBB-T TXC CORPORATION 7C XO (Standard) 12.288 MHz CMOS 3.3V ±50ppm
7C-33.000MDB-T TXC CORPORATION 7C XO (Standard) 33 MHz CMOS 1.8V ±50ppm
7C-1.8432MBB-T TXC CORPORATION 7C XO (Standard) 1.8432 MHz CMOS 3.3V ±50ppm
7C-38.400MDA-T TXC CORPORATION 7C XO (Standard) 38.4 MHz CMOS 1.8V ±25ppm
7C-49.152MBB-T TXC CORPORATION 7C XO (Standard) 49.152 MHz CMOS 3.3V ±50ppm
7C-54.000MBB-T TXC CORPORATION 7C XO (Standard) 54 MHz CMOS 3.3V ±50ppm
7C-9.8304MBD-T TXC CORPORATION 7C XO (Standard) 9.8304 MHz CMOS 3.3V ±25ppm
7C-2.048MBD-T TXC CORPORATION 7C XO (Standard) 2.048 MHz CMOS 3.3V ±25ppm
7C-8.192MBB-T TXC CORPORATION 7C XO (Standard) 8.192 MHz CMOS 3.3V ±50ppm
7C-30.000MBB-T TXC CORPORATION 7C XO (Standard) 30 MHz CMOS 3.3V ±50ppm
