首頁進口晶振XRCPB24M000F0Z00R0|耐高溫晶振|2016晶振|Murata村田晶振

    XRCPB24M000F0Z00R0|耐高溫晶振|2016晶振|Murata村田晶振

  • 規格型號：63498768
  • 頻率：24MHZ
  • 尺寸：2016MM
  • PDF
  • 產品描述：XRCPB24M000F0Z00R0|耐高溫晶振|2016晶振|Murata村田晶振,24MHz頻率與主流MCU,通信芯片的時鐘需求高度匹配,可用于高溫環境下的智能家電控制板,汽車電子輔助系統,工業高溫傳感器等設備


XRCPB24M000F0Z00R0|耐高溫晶振|2016晶振|Murata村田晶振

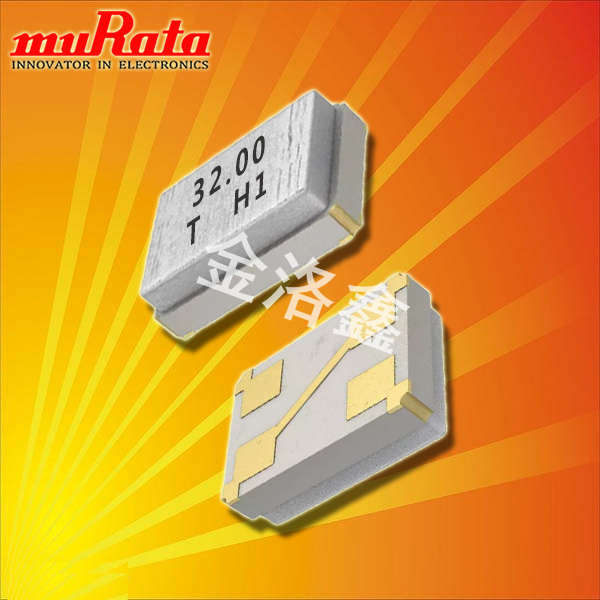

XRCPB24M000F0Z00R0是Murata村田推出的一款兼具小型化與耐高溫特性的石英晶振,核心適配對環境溫度有嚴苛要求的電子設備.型號中"24M000"明確其標稱頻率為24MHz,屬于中高頻晶振范疇,無內置振蕩電路,需搭配外部驅動電路實現時鐘信號輸出,作為村田旗下專注于特殊環境適配的晶振型號,其設計圍繞"耐高溫"核心需求展開,生產工藝與材料選型均經過特殊優化,能在高溫場景下保持穩定的頻率輸出,為設備核心功能(如數據處理,通信同步)提供可靠的時間基準,是高溫環境電子設備的關鍵元器件.


XRCPB24M000F0Z00R0|耐高溫晶振|2016晶振|Murata村田晶振
原廠型號 Originalmodel： XRCPB24M000F0Z00R0 品牌brand： 村田晶振
品牌brand： Murata村田晶振 ESR（等效串聯電阻）Resistance) 150 Ohms
型號名稱 Modelname： XRCPB 溫度OperatingTemperature -40°C~105°C
Type系列： MHz Crystal 腳位Termination： 4pad
頻率 frequency： 24 MHz 封裝類型PackageType： 4-SMD
FrequencyStability頻率穩定度 ±100ppm 高度PackageHeight： 0.50mm
frequencytolerance頻率容差 ±100ppm 最小包裝數MPQ： 3000
Loadcapacitance  負載電容 6pF 包裝Packaging：  TapeandReel

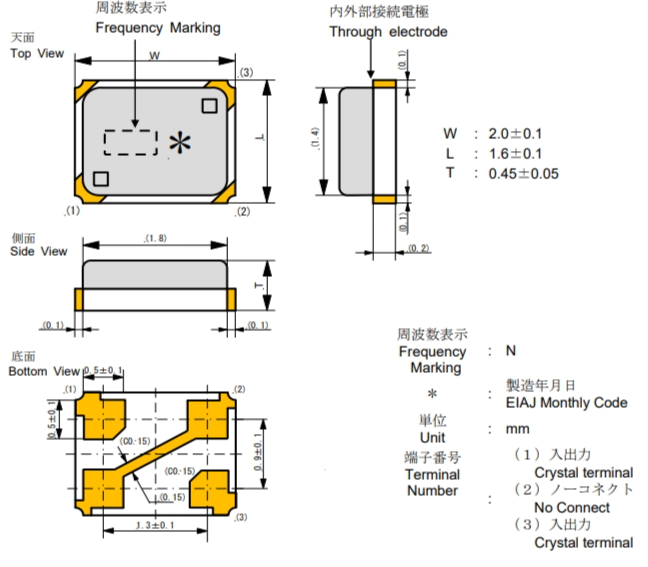

Size/Dimension尺寸 2.00mm x 1.60mm 安裝方式MountingStyle：   SurfaceMount


XRCPB24M000F0Z00R0|耐高溫晶振|2016晶振|Murata村田晶振


XRCPB24M000F0Z00R0|耐高溫晶振|2016晶振|Murata村田晶振
XRCGB25M000F3M00R0 Murata村田晶振 XRCGB MHz Crystal 25 MHz ±40ppm ±30ppm 6pF
XRCGB27M120F3M00R0 Murata村田晶振 XRCGB MHz Crystal 27.12 MHz ±40ppm ±30ppm 6pF
XRCGB24M000F3M00R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±40ppm ±30ppm 6pF
XRCGB24M000F2P00R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±20ppm ±20ppm 6pF
XRCGB32M000F1H01R0 Murata村田晶振 - MHz Crystal 32 MHz ±10ppm ±10ppm 8pF
XRCGB32M000F1H00R0 Murata村田晶振 XRCGB MHz Crystal 32 MHz ±10ppm ±10ppm 6pF
XRCGB25M000F3A00R0 Murata村田晶振 XRCGB MHz Crystal 25 MHz ±35ppm ±35ppm 6pF
XRCGB24M000F0L00R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±50ppm ±100ppm 6pF
XRCGB48M000F4M00R0 Murata村田晶振 XRCGB MHz Crystal 48 MHz ±40ppm ±45ppm 6pF
XRCGB24M000F3N00R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±30ppm ±30ppm 6pF
XRCGB27M120F3M10R0 Murata村田晶振 XRCGB MHz Crystal 27.12 MHz ±40ppm ±30ppm 10pF
XRCGB25M000F3M18R0 Murata村田晶振 - MHz Crystal 25 MHz ±40ppm ±30ppm 12pF
XRCGB32M000F2P01R0 Murata村田晶振 - MHz Crystal 32 MHz ±20ppm ±20ppm 8pF
XRCGB32M000F2P00R0 Murata村田晶振 XRCGB MHz Crystal 32 MHz ±20ppm ±20ppm 6pF
XRCGB25M000F2P02R0 Murata村田晶振 - MHz Crystal 25 MHz ±20ppm ±20ppm 10pF
XRCGB27M120F2P00R0 Murata村田晶振 XRCGB MHz Crystal 27.12 MHz ±20ppm ±20ppm 6pF
XRCGB25M000F2P00R0 Murata村田晶振 XRCGB MHz Crystal 25 MHz ±20ppm ±20ppm 6pF
XRCGB24M000F2P01R0 Murata村田晶振 - MHz Crystal 24 MHz ±20ppm ±20ppm 8pF
XRCGB27M120F3M13R0 Murata村田晶振 - MHz Crystal 27.12 MHz ±40ppm ±30ppm 10pF
XRCGB32M000F2P2CR0 Murata村田晶振 XRCGB MHz Crystal 32 MHz ±20ppm ±20ppm 8pF
XRCGB32M000FBH50R0 Murata村田晶振 - MHz Crystal 32 MHz ±10ppm ±15ppm 10pF
XRCGB24M000F2P91R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±20ppm ±20ppm 8pF
XRCGB16M000FXN00R0 Murata村田晶振 - MHz Crystal 16 MHz ±40ppm ±40ppm 6pF
XRCGB32M000F1H02R0 Murata村田晶振 - MHz Crystal 32 MHz ±10ppm ±10ppm 10pF
XRCGB32M000F1H19R0 Murata村田晶振 - MHz Crystal 32 MHz ±10ppm ±10ppm 6pF
XRCGB40M000F5A00R0 Murata村田晶振 - MHz Crystal 40 MHz ±65ppm ±50ppm 6pF
XRCGB24M000F3A00R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±35ppm ±30ppm 6pF
XRCGB27M120F3A00R0 Murata村田晶振 XRCGB MHz Crystal 27.12 MHz ±35ppm ±30ppm 6pF
XRCGB25M000F3A01R0 Murata村田晶振 XRCGB MHz Crystal 25 MHz ±35ppm ±30ppm 8pF
XRCGB48M000F5A00R0 Murata村田晶振 - MHz Crystal 48 MHz ±65ppm ±50ppm 6pF
XRCGE25M000FBA1AR0 Murata村田晶振 XRCFD MHz Crystal 25 MHz ±35ppm ±15ppm 6pF
XRCHA20M000F0A01R0 Murata村田晶振 XRCHA MHz Crystal 20 MHz ±100ppm ±100ppm 8pF
XRCGB27M120F0L00R0 Murata村田晶振 - MHz Crystal 27.12 MHz ±50ppm ±100ppm 6pF
XRCGB32M000F0L00R0 Murata村田晶振 - MHz Crystal 32 MHz ±50ppm ±100ppm 6pF
XRCGB24M000FAN00R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±40ppm ±25ppm 6pF
XRCGB38M400F4M00R0 Murata村田晶振 - MHz Crystal 38.4 MHz ±40ppm ±45ppm 6pF
XRCGB50M000F4M00R0 Murata村田晶振 - MHz Crystal 50 MHz ±40ppm ±45ppm 6pF
XRCGB32M000F3M00R0 Murata村田晶振 - MHz Crystal 32 MHz ±40ppm ±30ppm 6pF
XRCGB24M000F3M13R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±40ppm ±30ppm 6pF
XRCGB32M000F2P02R0 Murata村田晶振 - MHz Crystal 32 MHz ±20ppm ±20ppm 10pF
XRCGB30M000F2P00R0 Murata村田晶振 XRCGB MHz Crystal 30 MHz ±20ppm ±20ppm 6pF
XRCGB27M120F2P02R0 Murata村田晶振 - MHz Crystal 27.12 MHz ±20ppm ±20ppm 10pF
XRCGB32M000F2P26R0 Murata村田晶振 - MHz Crystal 32 MHz ±20ppm ±20ppm 5pF
XRCGB31M250F2P00R0 Murata村田晶振 XRCGB MHz Crystal 31.25 MHz ±20ppm ±20ppm 6pF
XRCGB27M120F3G00R0 Murata村田晶振 - MHz Crystal 27.12 MHz ±50ppm ±30ppm 6pF
XRCGB16M000FXN22R0 Murata村田晶振 XRCGB MHz Crystal 16 MHz ±40ppm ±40ppm 8pF
XRCGB27M600F2C00R0 Murata村田晶振 - MHz Crystal 27.6 MHz ±20ppm ±20ppm 6pF
XRCGB24M000F1H01R0 Murata村田晶振 - MHz Crystal 24 MHz ±10ppm ±10ppm 8pF
XRCGB26M000F1H02R0 Murata村田晶振 - MHz Crystal 26 MHz ±10ppm ±10ppm 10pF
XRCGB24M000F1H70R0 Murata村田晶振 - MHz Crystal 24 MHz ±20ppm ±10ppm 6pF
XRCGB32M000F1H83R0 Murata村田晶振 - MHz Crystal 32 MHz ±15ppm ±10ppm 9pF
XRCGE27M000FBA1AR0 Murata村田晶振 XRCGE MHz Crystal 27 MHz ±35ppm ±15ppm 6pF
XRCGB26M000F3A00R0 Murata村田晶振 - MHz Crystal 26 MHz ±35ppm ±30ppm 6pF
XRCGE26M000FBA1BR0 Murata村田晶振 XRCGE MHz Crystal 26 MHz ±35ppm ±15ppm 8pF
XRCGE20M000F3A1AR0 Murata村田晶振 XRCFD MHz Crystal 20 MHz ±45ppm ±30ppm 6pF
XRCGB24M000F2A01R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±35ppm ±20ppm 8pF
XRCGB27M120F3P00R0 Murata村田晶振 - MHz Crystal 27.12 MHz ±20ppm ±30ppm 6pF
XRCGB32M000F2P55R0 Murata村田晶振 XRCGB MHz Crystal 32 MHz ±20ppm ±20ppm 6pF
XRCPB26M000F2P00R0 Murata村田晶振 XRCPB MHz Crystal 26 MHz ±20ppm ±20ppm 6pF
XRCGB32M000F1H18R0 Murata村田晶振 XRCFD MHz Crystal 32 MHz ±15ppm ±10ppm 9pF
