首頁進口晶振XNCLH24M576CHJA8P0|XNCLH有源晶振|家用設備晶振|高性能晶振

    XNCLH24M576CHJA8P0|XNCLH有源晶振|家用設備晶振|高性能晶振

  • 規格型號：11117095
  • 頻率：24.576 MHz

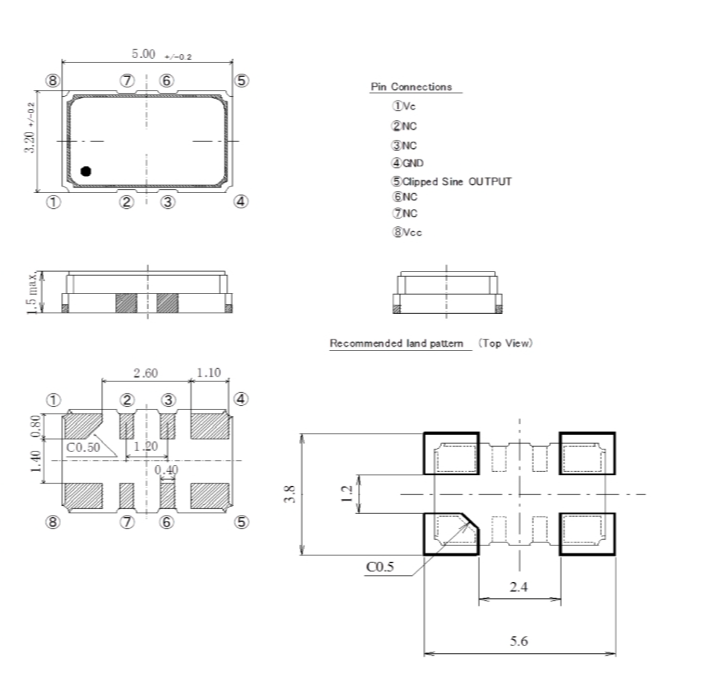

  • 尺寸：5.00mm x 3.20mm
  • PDF
  • 產品描述：XNCLH24M576CHJA8P0|XNCLH有源晶振|家用設備晶振|高性能晶振,24.576MHz頻率與音頻處理芯片高度匹配,能減少音頻信號處理過程中的時序誤差,降低音質失真,提升影音播放的流暢度與清晰度


XNCLH24M576CHJA8P0|XNCLH有源晶振|家用設備晶振|高性能晶振

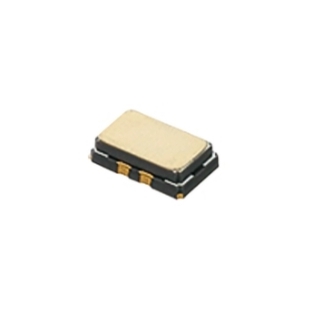

XNCLH24M576CHJA8P0是Murata村田XNCLH系列下的一款高性能有源晶振,專為家用設備的時鐘信號需求設計,核心解決家用場景中設備對時鐘穩定性,易用性的雙重訴求.型號中"24M576"明確標稱頻率為24.576MHz,該頻率是家用電子設備(如智能家居自動化晶振,影音設備)中主流的時鐘頻率,能精準匹配MCU,音頻處理芯片,通信模塊的同步需求,作為有源晶振,其內置完整振蕩電路,無需外部驅動組件即可直接輸出穩定時鐘信號,省去家用設備電路設計中額外的驅動電路搭建步驟,降低硬件設計復雜度,是家用設備實現精準控制與高效功能的關鍵元器件.


XNCLH24M576CHJA8P0|XNCLH有源晶振|家用設備晶振|高性能晶振
原廠型號 Originalmodel： XNCLH24M576CHJA8P0 品牌brand： Murata村田晶振
Manufacturer品牌 Murata村田晶振 OperatingTemperature溫度 -40°C ~ 85°C
Series型號 XNCLH Current-Supply(Max) 3.5mA
Type類型 TCXO工業應用晶振 PackageHeight高度 1.50mm
Frequency頻率 24.576 MHz Termination  腳位 8pad
輸出方式 Output： CMOS PackageType  封裝類型 8-SMD
Voltage-Supply電壓 3.3V Packaging  包裝 TapeandReel
FrequencyStability頻率穩定度 ±280ppb 安裝方式 Installation： Surfacemount
Size/Dimension尺寸 5.00mm x 3.20mm 最小包裝數MPQ： 1000


XNCLH24M576CHJA8P0|XNCLH有源晶振|家用設備晶振|高性能晶振


XNCLH24M576CHJA8P0|XNCLH有源晶振|家用設備晶振|高性能晶振
XRCGB25M000F3M00R0 Murata村田晶振 XRCGB MHz Crystal 25 MHz ±40ppm ±30ppm 6pF
XRCGB27M120F3M00R0 Murata村田晶振 XRCGB MHz Crystal 27.12 MHz ±40ppm ±30ppm 6pF
XRCGB24M000F3M00R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±40ppm ±30ppm 6pF
XRCGB24M000F2P00R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±20ppm ±20ppm 6pF
XRCGB32M000F1H01R0 Murata村田晶振 - MHz Crystal 32 MHz ±10ppm ±10ppm 8pF
XRCGB32M000F1H00R0 Murata村田晶振 XRCGB MHz Crystal 32 MHz ±10ppm ±10ppm 6pF
XRCGB25M000F3A00R0 Murata村田晶振 XRCGB MHz Crystal 25 MHz ±35ppm ±35ppm 6pF
XRCGB24M000F0L00R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±50ppm ±100ppm 6pF
XRCGB48M000F4M00R0 Murata村田晶振 XRCGB MHz Crystal 48 MHz ±40ppm ±45ppm 6pF
XRCGB24M000F3N00R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±30ppm ±30ppm 6pF
XRCGB27M120F3M10R0 Murata村田晶振 XRCGB MHz Crystal 27.12 MHz ±40ppm ±30ppm 10pF
XRCGB25M000F3M18R0 Murata村田晶振 - MHz Crystal 25 MHz ±40ppm ±30ppm 12pF
XRCGB32M000F2P01R0 Murata村田晶振 - MHz Crystal 32 MHz ±20ppm ±20ppm 8pF
XRCGB32M000F2P00R0 Murata村田晶振 XRCGB MHz Crystal 32 MHz ±20ppm ±20ppm 6pF
XRCGB25M000F2P02R0 Murata村田晶振 - MHz Crystal 25 MHz ±20ppm ±20ppm 10pF
XRCGB27M120F2P00R0 Murata村田晶振 XRCGB MHz Crystal 27.12 MHz ±20ppm ±20ppm 6pF
XRCGB25M000F2P00R0 Murata村田晶振 XRCGB MHz Crystal 25 MHz ±20ppm ±20ppm 6pF
XRCGB24M000F2P01R0 Murata村田晶振 - MHz Crystal 24 MHz ±20ppm ±20ppm 8pF
XRCGB27M120F3M13R0 Murata村田晶振 - MHz Crystal 27.12 MHz ±40ppm ±30ppm 10pF
XRCGB32M000F2P2CR0 Murata村田晶振 XRCGB MHz Crystal 32 MHz ±20ppm ±20ppm 8pF
XRCGB32M000FBH50R0 Murata村田晶振 - MHz Crystal 32 MHz ±10ppm ±15ppm 10pF
XRCGB24M000F2P91R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±20ppm ±20ppm 8pF
XRCGB16M000FXN00R0 Murata村田晶振 - MHz Crystal 16 MHz ±40ppm ±40ppm 6pF
XRCGB32M000F1H02R0 Murata村田晶振 - MHz Crystal 32 MHz ±10ppm ±10ppm 10pF
XRCGB32M000F1H19R0 Murata村田晶振 - MHz Crystal 32 MHz ±10ppm ±10ppm 6pF
XRCGB40M000F5A00R0 Murata村田晶振 - MHz Crystal 40 MHz ±65ppm ±50ppm 6pF
XRCGB24M000F3A00R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±35ppm ±30ppm 6pF
XRCGB27M120F3A00R0 Murata村田晶振 XRCGB MHz Crystal 27.12 MHz ±35ppm ±30ppm 6pF
XRCGB25M000F3A01R0 Murata村田晶振 XRCGB MHz Crystal 25 MHz ±35ppm ±30ppm 8pF
XRCGB48M000F5A00R0 Murata村田晶振 - MHz Crystal 48 MHz ±65ppm ±50ppm 6pF
XRCGE25M000FBA1AR0 Murata村田晶振 XRCFD MHz Crystal 25 MHz ±35ppm ±15ppm 6pF
XRCHA20M000F0A01R0 Murata村田晶振 XRCHA MHz Crystal 20 MHz ±100ppm ±100ppm 8pF
XRCGB27M120F0L00R0 Murata村田晶振 - MHz Crystal 27.12 MHz ±50ppm ±100ppm 6pF
XRCGB32M000F0L00R0 Murata村田晶振 - MHz Crystal 32 MHz ±50ppm ±100ppm 6pF
XRCGB24M000FAN00R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±40ppm ±25ppm 6pF
XRCGB38M400F4M00R0 Murata村田晶振 - MHz Crystal 38.4 MHz ±40ppm ±45ppm 6pF
XRCGB50M000F4M00R0 Murata村田晶振 - MHz Crystal 50 MHz ±40ppm ±45ppm 6pF
XRCGB32M000F3M00R0 Murata村田晶振 - MHz Crystal 32 MHz ±40ppm ±30ppm 6pF
XRCGB24M000F3M13R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±40ppm ±30ppm 6pF
XRCGB32M000F2P02R0 Murata村田晶振 - MHz Crystal 32 MHz ±20ppm ±20ppm 10pF
XRCGB30M000F2P00R0 Murata村田晶振 XRCGB MHz Crystal 30 MHz ±20ppm ±20ppm 6pF
XRCGB27M120F2P02R0 Murata村田晶振 - MHz Crystal 27.12 MHz ±20ppm ±20ppm 10pF
XRCGB32M000F2P26R0 Murata村田晶振 - MHz Crystal 32 MHz ±20ppm ±20ppm 5pF
XRCGB31M250F2P00R0 Murata村田晶振 XRCGB MHz Crystal 31.25 MHz ±20ppm ±20ppm 6pF
XRCGB27M120F3G00R0 Murata村田晶振 - MHz Crystal 27.12 MHz ±50ppm ±30ppm 6pF
XRCGB16M000FXN22R0 Murata村田晶振 XRCGB MHz Crystal 16 MHz ±40ppm ±40ppm 8pF
XRCGB27M600F2C00R0 Murata村田晶振 - MHz Crystal 27.6 MHz ±20ppm ±20ppm 6pF
XRCGB24M000F1H01R0 Murata村田晶振 - MHz Crystal 24 MHz ±10ppm ±10ppm 8pF
XRCGB26M000F1H02R0 Murata村田晶振 - MHz Crystal 26 MHz ±10ppm ±10ppm 10pF
XRCGB24M000F1H70R0 Murata村田晶振 - MHz Crystal 24 MHz ±20ppm ±10ppm 6pF
XRCGB32M000F1H83R0 Murata村田晶振 - MHz Crystal 32 MHz ±15ppm ±10ppm 9pF
XRCGE27M000FBA1AR0 Murata村田晶振 XRCGE MHz Crystal 27 MHz ±35ppm ±15ppm 6pF
XRCGB26M000F3A00R0 Murata村田晶振 - MHz Crystal 26 MHz ±35ppm ±30ppm 6pF
XRCGE26M000FBA1BR0 Murata村田晶振 XRCGE MHz Crystal 26 MHz ±35ppm ±15ppm 8pF
XRCGE20M000F3A1AR0 Murata村田晶振 XRCFD MHz Crystal 20 MHz ±45ppm ±30ppm 6pF
XRCGB24M000F2A01R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±35ppm ±20ppm 8pF
XRCGB27M120F3P00R0 Murata村田晶振 - MHz Crystal 27.12 MHz ±20ppm ±30ppm 6pF
XRCGB32M000F2P55R0 Murata村田晶振 XRCGB MHz Crystal 32 MHz ±20ppm ±20ppm 6pF
XRCPB26M000F2P00R0 Murata村田晶振 XRCPB MHz Crystal 26 MHz ±20ppm ±20ppm 6pF
XRCGB32M000F1H18R0 Murata村田晶振 XRCFD MHz Crystal 32 MHz ±15ppm ±10ppm 9pF
